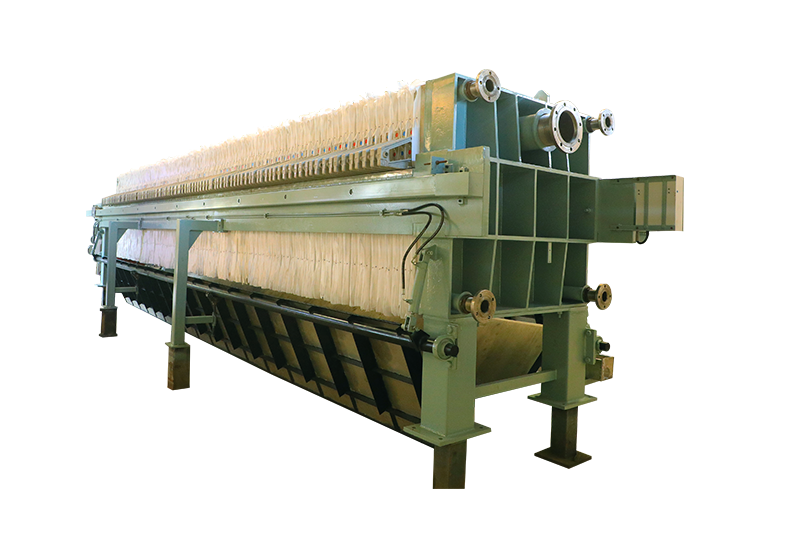

Semi-Auto Filter Press
The Semi-Auto Filter Press is a flexible and efficient solution that has been designed for several industries requiring solid-liquid separation such as chemical processing, mining, wastewater treatment, food & beverage, etc This filter press combines manual and automated operations to balance flexibility with high efficiency in operation.
The working principle of the semi auto filter press also ensures simple operation procedures and complete safety against mechanical hazards
The Semi Automatic Filter Press is a cost effective option by dispensing with complicated design and assemblies. This type of Filter Press is working through Push Button type Control Panel with the option for Hydraulic Cylinder, Drip Tray (Boom Door), Cam Mechanism (Cake Shaking Device), Plate Shifter with Remote Control & Emergency Stop Button. The Semi-Auto Filter Press enables automation with hands-on control balancing efficiency against operational flexibility.
All the valves of a semi auto filter press are opened and closed with the help of physical labor.
Various sizes and configurations of this filter press make it suitable for specific applications thereby offering a customizable option for businesses aiming at optimizing their filtration processes.
Benefits
- Enhanced Control:Combines automation with manual operations allowing operators to have hands-on control where needed while still benefiting from automated processes.
- Cost-Effective: More affordable than fully automated systems making it accessible to small scale or financially constrained ventures.
- Versatile Application: Suitable for a wide range of industries and materials thereby providing room for handling different types of slurries as well as filter cakes.
- Durable Construction:Built to withstand tough industrial conditions with high-quality materials that ensure longevity and reliable performance.
- Reduced Operator Fatigue: Automates the most labor-intensive tasks such as pressure application and cake discharge reducing physical strain on operators.
- Customizable: Available in various sizes and plate configurations allowing it to be tailored towards specific operational needs.
- Maintenance-Friendly: Easier to maintain than fully automated systems having simple components that can be serviced or replaced when they go bad or require replacement respectively.
How to Use
- Setup - First, make sure that your filter press is installed and properly connected with required feed lines, power sources as well as hydraulic systems. Check for cleanliness and proper placement of the filter plates.
- Loading - Prepare the slurry or material that needs to be filtered. Load the slurry into the feed pump manually while maintaining uniform distribution across the filter plates.
- Operation - Inputting pressure values and cycle time on its control panel thus setting desired parameters on a control panel such as pressure settings and cycle duration purposes will set it working. Then switch on hydraulic system to let the pressure from it reach out to the filter plates hence starting filtration process.
- Filtration - Observe press while separation of solids from liquids in filtration occurs, it is automatically maintained under pressure although occasionally operators may need to adjust settings or shift plates manually if deemed necessary.
- Cake Discharge - At this point, filtering cycles have come to an end; hence, cake should be removed from these plates either manually or semi-automatically depending upon specific configuration adopted by given filter press therefore.
- Maintenance - Regularly clean your filter cloths and plates for them to work optimally during filtration processes which will take place subsequently. Assess whether there are any signs of wear or damage within the hydraulic system, control panel together with other components, perform maintenance works wherever necessary hence keep your system running smoothly as possible.
- Shutdown - As one last step, be sure to eliminate all slurry from the system and properly clean the filter press before it is shut down according to the manufacturer’s instructions so that no issues will occur in the next operation.
By doing this, your Semi-Auto Filter Press will work well serving reliable and consistent industrial filtration.
Hydraulic Cylinder
The hydraulic cylinder in the semi-automatic filter press is the powerhouse behind filtration. It exerts uniform pressure on filter plates to ensure effective dewatering of slurry. This cylinder’s rugged construction and dependability allows it to withstand the rigors of continuous operation in industrial environments. The hydraulic cylinder, helps yield perfect cakes of filters that are highly essential to maintain efficiency and productivity in a Semi-Auto Filter Press.

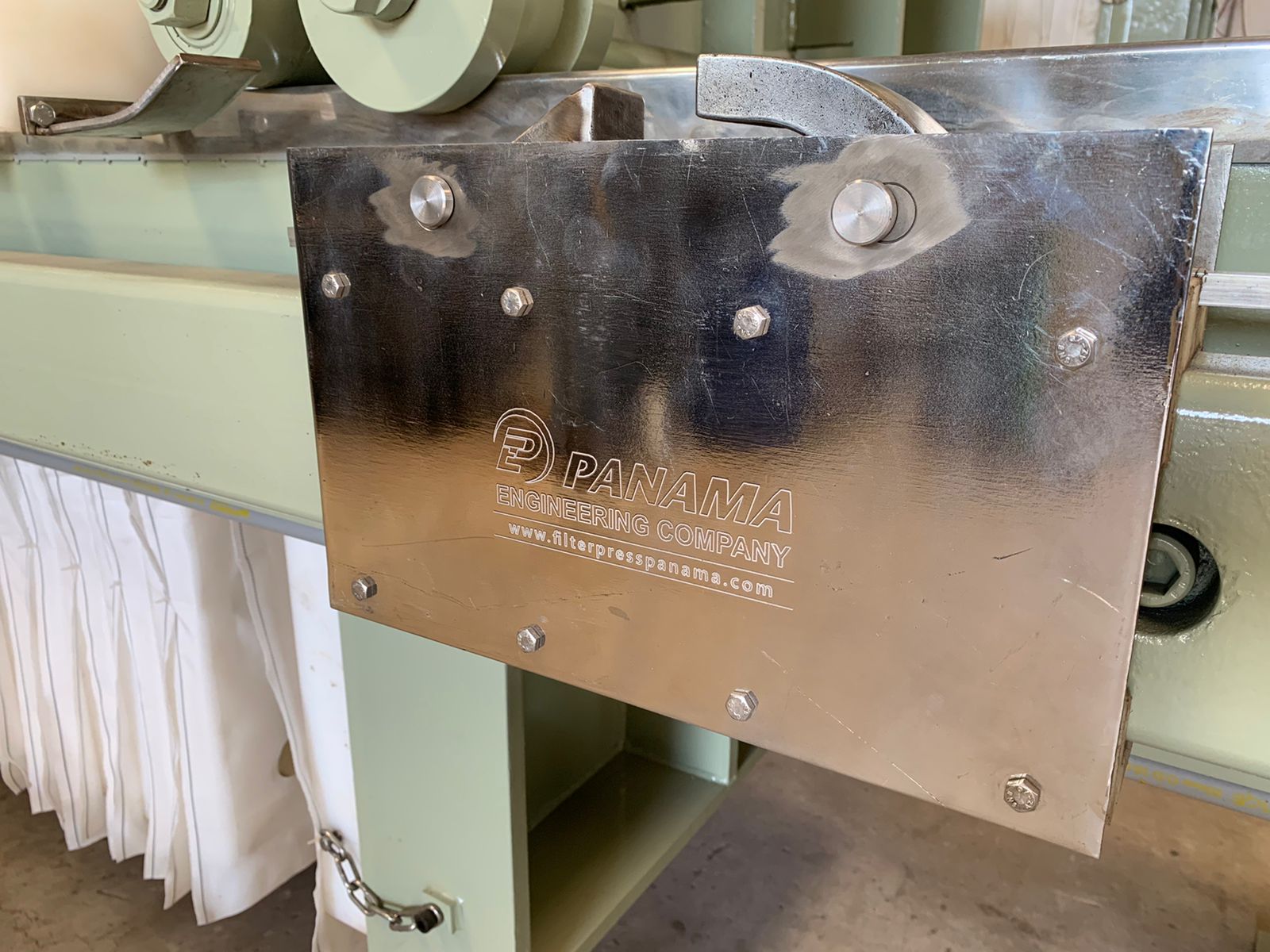

Plate Shifter
Plate shifter is an important feature of semi automatic filter press that automates plate movement during cake discharge. The process accelerates by reducing human intervention, which reduces downtime between each cycle of filtering. When shifting plates the machine operators will only be required to execute repetitive tasks which leaves them with ample time to focus on other critical areas regarding operation hence enhancing workflow and productivity inside the press.
Drip Tray
For this purpose, there exists a Drip Tray in a semi-auto filter press that captures any draining liquid from filter plates during operations thus maintaining cleanliness at work place. By being situated underneath these plates, drip tray ensures that liquid does not spill on floors thereby minimizing chances of slipping accidents hence all time safety while working. There is nothing as easy to clean as this drip tray since it is made of anti-corrosive materials which can lead it through harsh environments associated with industrial filtration processes thus maintaining hygiene and smoothness of operations.

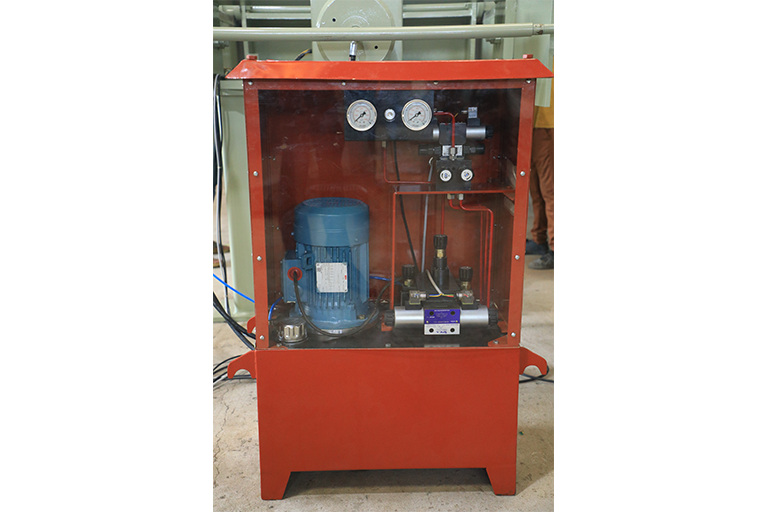

Hydraulic Power Pack
A hydraulic power pack (HPP) drives hydraulics on a semi-automatic filter press. HPPs create the hydraulic pressure needed to operate the hydraulic cylinder so as to deliver constant force during every round of filtration whenever necessary. Robust components within this power pack make sure that its performance remains steady under harsh environmental conditions prevalent within industries while ensuring reliability features are incorporated into its design requirements as the press requires power to run efficiently, deliver efficient filtration and form optimum cake shapes.
Electric Control Panel
The electric control panel is the main command unit of a semi-automatic filter press, which allows operators to take charge of the filtration process. It eases alteration of pressure settings, cycle times and other key parameters in response to specific operations. For instance, it has user-friendly displays that are easy to use because they have clear indicators for monitoring filters’ work. As an integral part of Semi-Automatic Filter Press, this control panel works to better efficiency through real time feedbacks and helps regulate performance therefore high quality filters at all times.
